Problem with making custom pcb shape

closed

Asger Thue

Hi. When i try to make a custom PCB shape i add the DXF file but nothing happens or i get a giant triangle. This happens even tho I use the same DXF in both the root and the genereal "assets".

April 17, 2024

Gretel Bot

This issue has been closed due to inactivity. Feel free to create a new issue if you can provide additional information to help us reproduce.

Gretel Bot

marked this post as

closed

collinsemasi

marked this post as

waiting for customer feedback

Nico

Hi Asger Thue!

This is likely because the DXF file doesn't meet the requirements to be used as a layout shape (https://docs.flux.ai/tutorials/custom-pad-shapes#shape-requirements). Make sure the DXF:

Lines need to form a single closed shape.
Do not include any holes or cutouts. Those will need to be added afterward using holes.
Multiple lines need to be converted into a single line (polyline for SVG).

If that still doesn't work, feel free to send the DXF file and I'll take a look

Asger Thue

Thanks Nico

The DXF file was made in SolidWorks 2024 and as fare as i can se, it follows the requirements. Can you check it? https://drive.google.com/file/d/1LeNQejknZproA2uxU34YtXfTc0zy51R5/view?usp=sharing

Nico

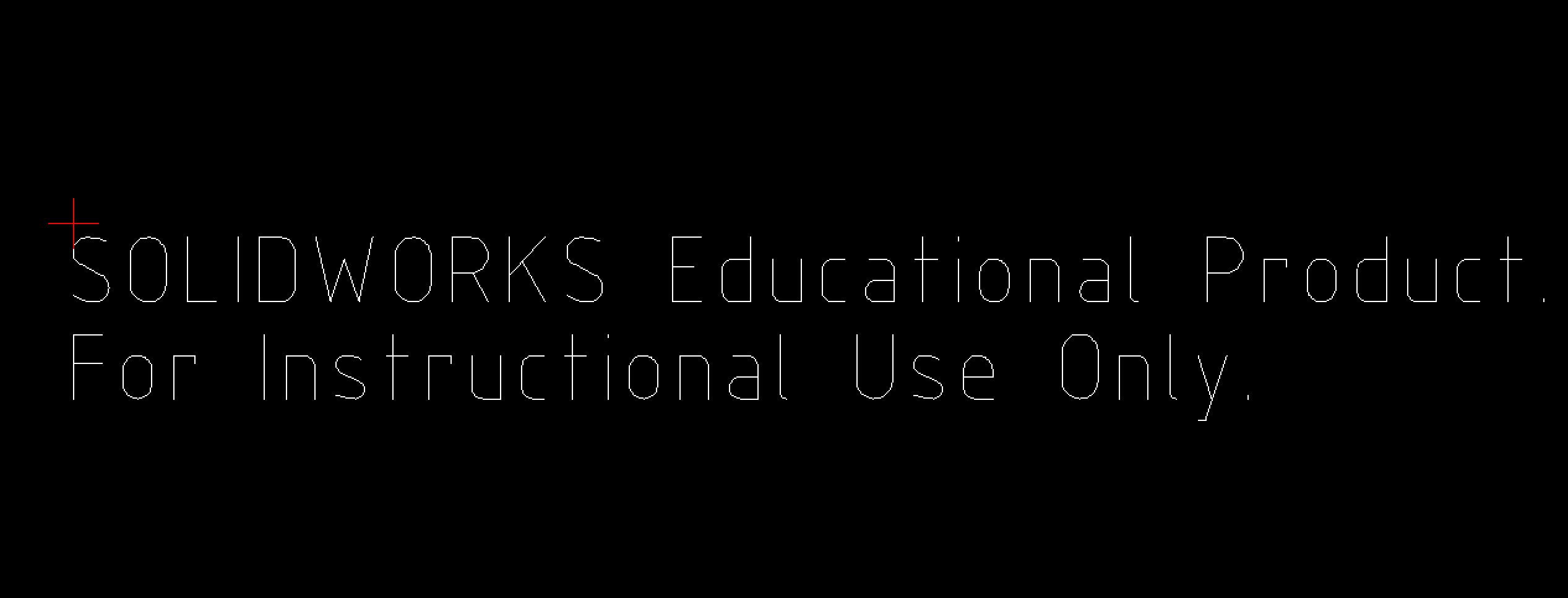

Asger Thue there might be something wrong with your export. This is what I see when I try to open it with other CAD tools.

Asger Thue

I see It might be because it is made on a school license. I will try with inkskabe then
