Pads shape bug | Voters

Pads shape bug

closed

Vasil Mochan

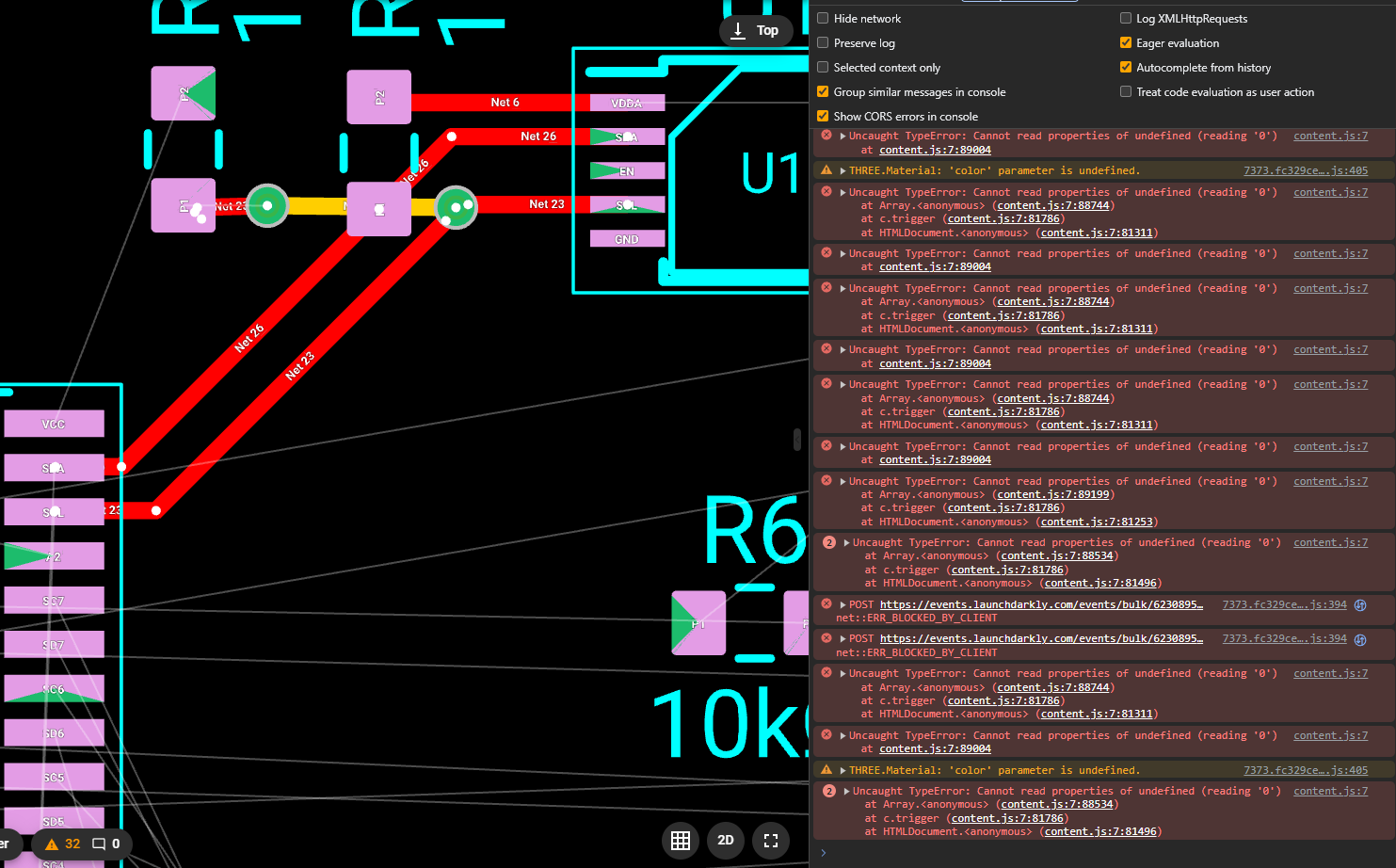

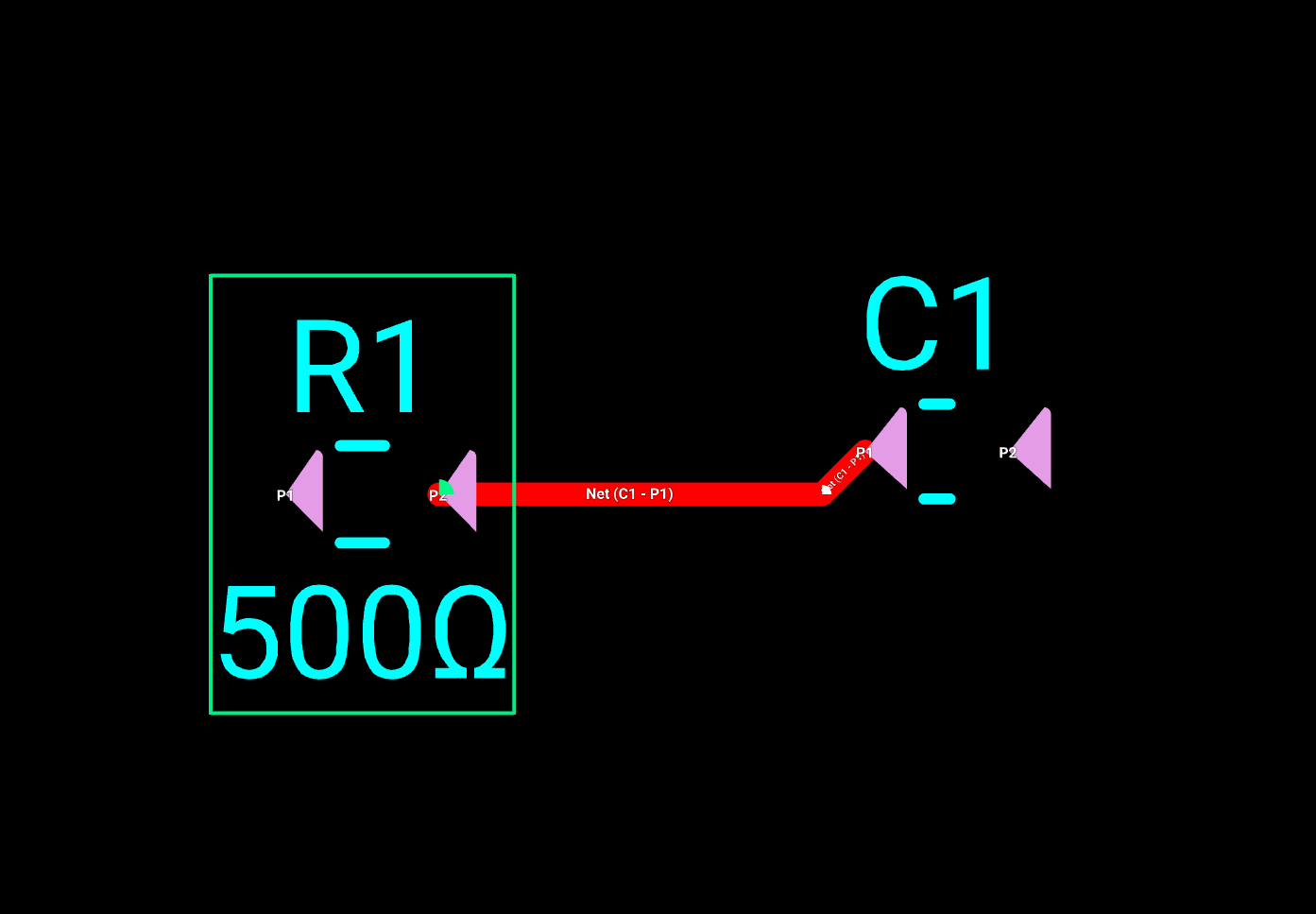

All pads on the 2D view are triangular, no matter what the surface. This happens only to me and in Chrome. Everything is ok in incognito mode

June 29, 2023

Matthias

marked this post as

closed

Michael Ilewicz

the flickering that occurs for me seems to be machine specific. It persists across different projects and browsers, but is gone on a machine with a proper graphics card. Also the performance here is way better. I strongly suspect this is a problem with Hardware acceleration, disabling it in my browser settings makes the flickering disappear, but the program is now so slow, it is unusable. It literally takes 5-20 seconds to zoom out a little or select a component

Jharwin

Michael Ilewicz: Thank you for elaborating on what you have noticed on your machine. Could you please provide the exact model of your GPU?

Michael Ilewicz

Jharwin: I have built in Graphics in my CPU: AMD Ryzen 5 4500U with Radeon Graphics. System Information and device manager don't reveal additional information

Jharwin

Merged in a post:

Weird flickering and geometrical shapes appearing on canvas

collinsemasi

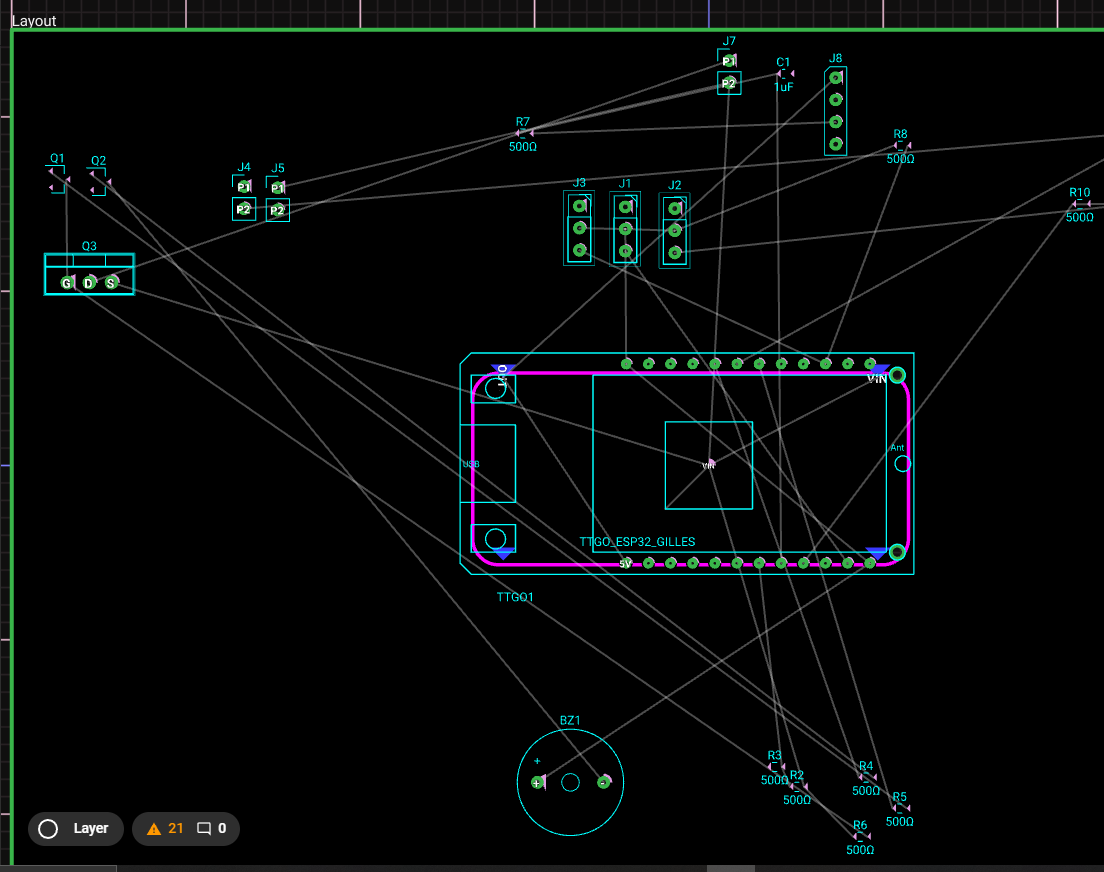

Whenever I'm working on a layout of a design, I get to see some weird flickering on some parts and weird geometrical shapes appear and disappear almost immediately

Check Loom: https://www.loom.com/share/316fdbb6930b4e00be0c0b8e8f4b2971?sid=5f267b8f-54c0-4a84-9fb1-3e35106e6f23

November 24, 2023

Jharwin

Merged in a post:

2D layout pads flickering

Michael Ilewicz

the pads are constantly flickering in green and red making it very unpleasant to work with the PCB Layout tool. Also, sometimes when creating new traces, they are not visible and the page requires a hard refresh. Happens on Chrome and Brave, on all projects. I am running on an AMD Ryzen 5 4500U with 16 Gb of Ram, Windows 10

October 3, 2023

Jharwin

Hello Michael Ilewicz

Upon reviewing this ticket, I noticed that it is closely related to another existing ticket. In order to streamline our support process and ensure a more efficient resolution, I'll be merging these tickets together.

Jharwin

Merged in a post:

Triangulated Pads

Ziven Posner

September 29, 2023

Jharwin

marked this post as

planned

Jeffrey Lam

Merged in a post:

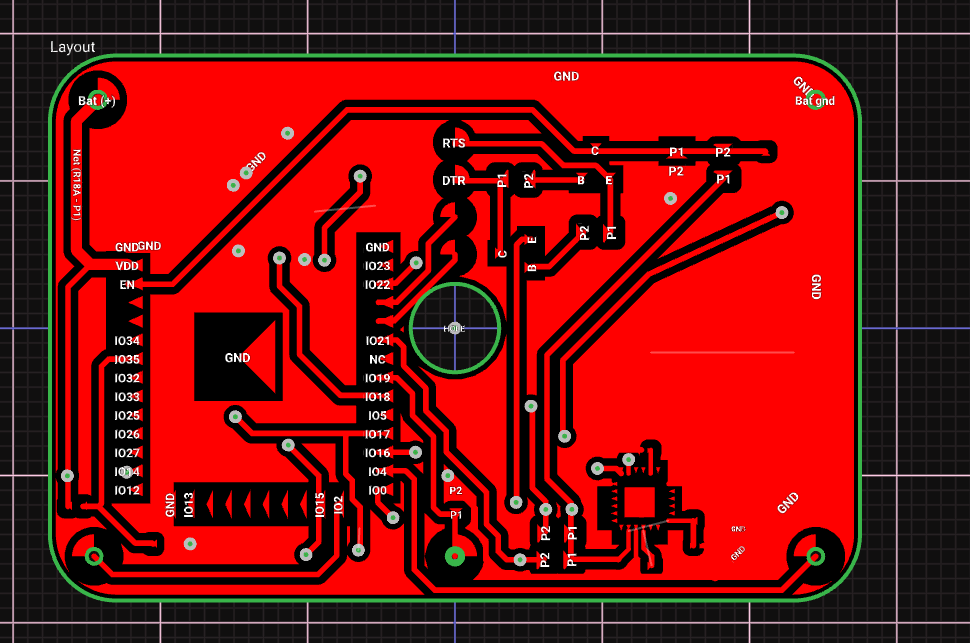

All shapes are rendered wrongly in PCB

Giulio Zausa

August 21, 2023

Jeffrey Lam

marked this post as

open

Reopening this and merging in latest case by Giulio.

Giulio Zausa

Edge and chrome in all envs, Firefox seems to be fine

→
