3D view erroneously displays pad with solder mask opening
complete
Brooks Solveig

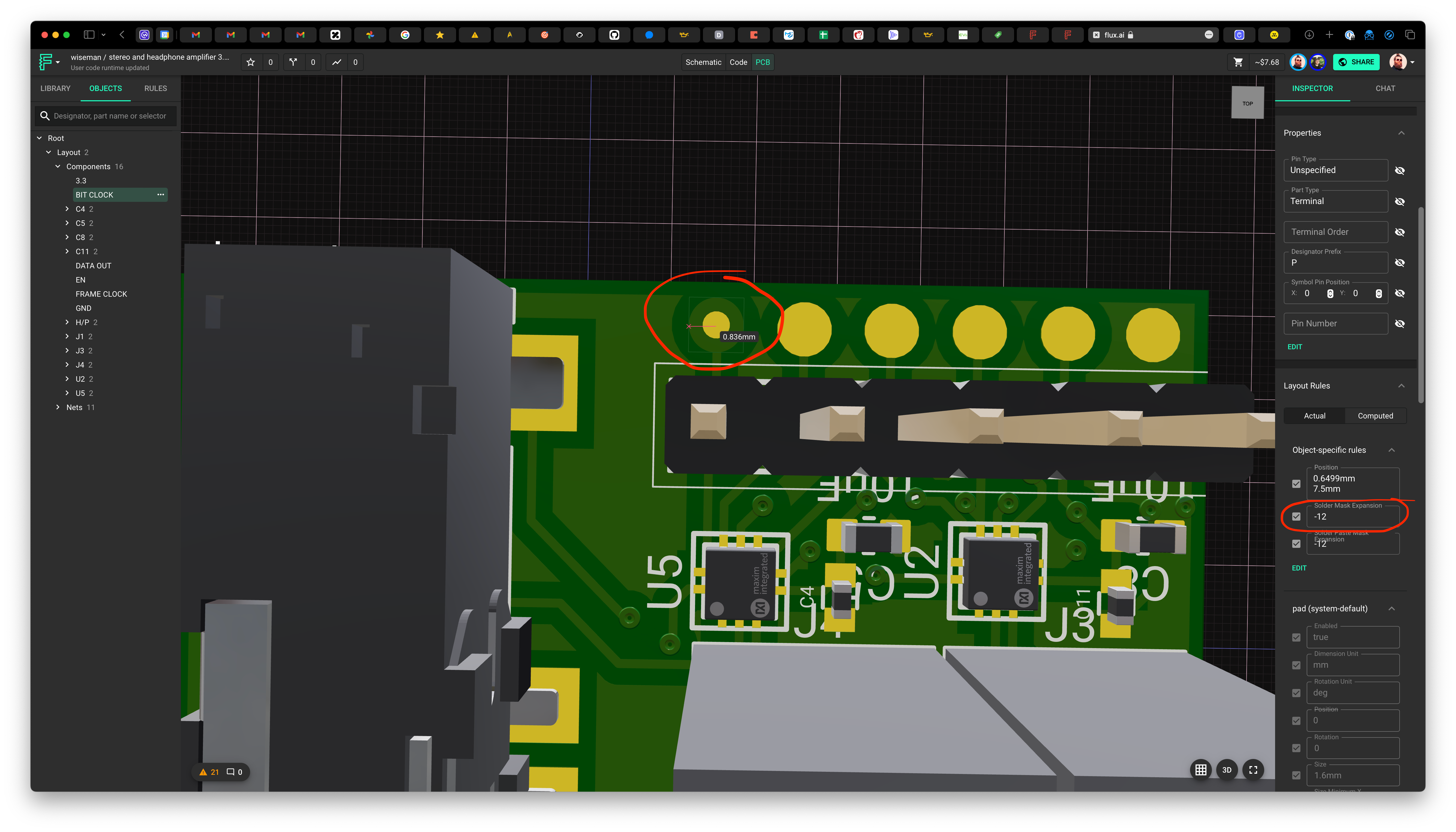

I'm helping a user with their project which is a module. It's a best practice to close up the pads which connect the layout to the outside world using a negative value on Solder Mask Expansion. After doing this, 2D looks good, as does an online Gerber viewer, but 3D shows the pad as still having a solder mask opening.
Shared access with Support with permission from the user.
N
Nick Fields
complete
Gretel Bot
The fix for this issue is in testing.
Gretel Bot
in release
Gretel Bot
in main
Jharwin
planned
